F2002 Catalytic Converter Support Mat
Introduction
Minye F2002 converter support mat is design and fabricated to provide the function of catalyst retention, thermal insulation and exhaust seal in all the variety of catalyti cconverter systems. F2002 could be a cost-effective solution for the regions and countries where do not have RCF (Refractory Ceramic Fiber) usage restriction, it is obvious that F2002 also is an alternative solution to high-cost PCW (Polycrystal Wool)products.
As a part of catalytic converter support mat product family, F2002 was designed for full operation temperature range with satisfied durability performance (Ambientto1050℃)
F2002 support mat contains zero vermiculite content same as all other industry standard non-expanding mat. 91~95% of F2002 composition is special treatment RCF, with the help of the characteristics of this special fiber (extreme low shot content and micro-crystallization) giving F2002 excellent performance under all operation conditions.
As mentioned above, F2002 is specific and cost-effective solution for a wild range of emission control devices, including diesel oxidation catalysts (DOC), diesel particulate filters(DPF), and selective catalyst reduction units (SCR), as well as gasoline oxidation Catalyst, known as TWC.
Basic Information
| Area | Nominal | Typical |
| Density | Thickness | CaningGap |
| (g/m2) | (mm) | (mm) |
| 1600 | 9.8 | 3.6 |
| 1800 | 11 | 4 |
| 2700 | 16.5 | 6 |
*Other Basis weight please contact with Minye application engineer
Chemical Composition
| Fiber (RCF) | 93% | +/-2% |
| Vermiculite | 0% | n/a |
| Binder | 7% | +/-2% |

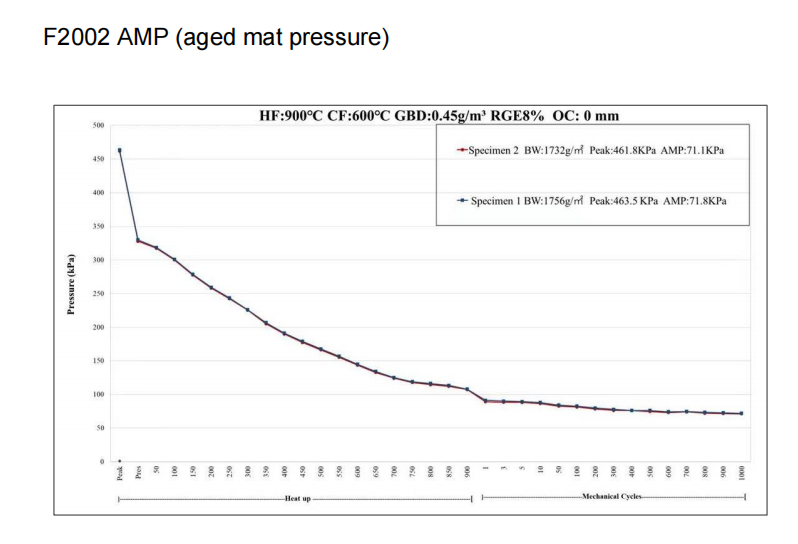

F2002 AMP (aged matpressure)
